PRODOCUT OVERWIEW:

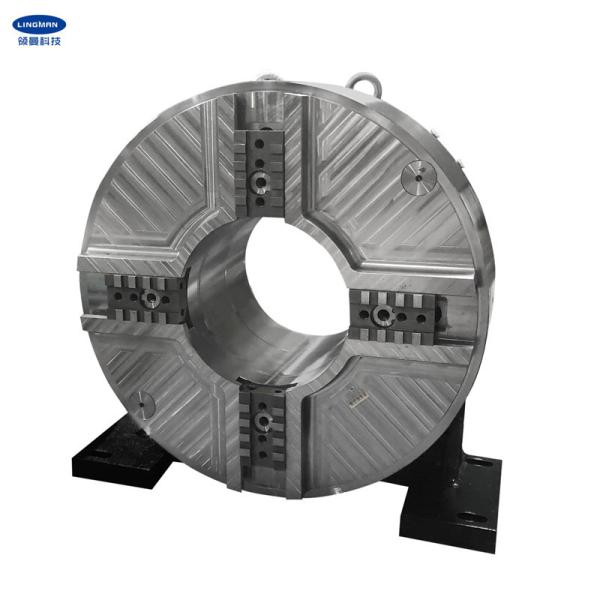

G1200Bs-630 Automatic Main chuck and rotary CNC fiber laser tube cutting machine chuck for metal tube
This product is specially designed for laser pipe cutter.The product itself can be used as an independent spindle with a chuck in the middle which can firmly clamp the wokrpiece and rotate at the same time.With the built-in two indenpent cylinders,one-way valve and check valve,it has a long-term pressure-holding function (more than 8 hours),rapid clamping and loosening action can be achieved through the side rotation of air inlet,and disconnect the air source to start work.After the product base is fixed,connect the compressed air source(0.4-0.9Mpa)to realize clamping and driving the workpiece to rotate.It is mainly used for workpiece clamping and rotating.
Because of the long length of the parts processed by the cutter,the main chuck used as the head position of laser cutting and the tail chuck matched with it are usually installed in pairs on the equipment.
The product is stable in structure and can withstand large radial force,axial force and overturning force.It has smooth rotation,high accuracy and low noise.The light weight and small rotational inertia can greatly improve cutting efficiency and save energy.
The productis a four-claw dual-power automatic two-two-center structure.which can clamp the circlar,square,retangular,elliptical and other centrally axisymmetric parts.
The product center is hollow structure,in order to keep the using environment clean and sanitary,the series of products can install the dust extraction device on the back,and are recommanded for installation in the pipe cutter.
| Model | Claw Stroke(mm) | Maximum clamping force(KN) | Allowable pressure(Mpa) | Limit speed(r/min) | Clamping range((mm) | Central height(mm) | Rotational inertia(Kg.㎡) | Rotating part weight(Kg) | Whole unit weight(Kg) |
| G800B-400 | 120 | 9.5 | 0.25-1.0 | 150 | Φ20-Φ390 | 450 | 40.4 | 426 | 601 |
| G900B-440 | 107.5 | 9.7 | 0.25-1.0 | 150 | Φ20-Φ430 | 480 | 55.4 | 454 | 642 |
| G1000B-520 | 120 | 15.7 | 0.25-1.0 | 120 | Φ30-Φ500 | 560 | 118.4 | 728 | 972 |
| G1200B-630 | 140 | 21.2 | 0.25-1.0 | 100 | Φ50-Φ610 | 660 | 272 | 1257 | 1373 |
SIMILIAR PRODUCT:
WORK SHOP:
FAQ:
Q:What's the OEM serivce of OREE LASER?
A1:1. Customized and OEM orders are welcome if you need;
2. All the OEM services are free, customer only need to provide us with your logo drawing,
function requirements, colors etc;
3. No MOQ required.
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect
the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe
tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will
response within 24 hours as quick as we can to solve it for you.
Plenty of technical support online is available; free global regional training services.
Q: Are you factory or trading company?
A: We are an OEM factory with many experience, annual productivity can reach 5,000,000 sets.
Q: What's your MOQ?
A: We don't have MOQ. No matter 1set order or 100sets order, we will give you support with our heart and soul.
Q: What's the QC system or OREE LASER?
A1. Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure;
2. Random sample testing by Quality Control;
3. Traceability for OREELASER machines;
4. Certified according to ISO 9001
WHY CHOOSE LINGMAN:
A: Professional Factory:
We have 20year special experience in manufacturing& exporting gears.Our imporoved and advanced enquipment and owned skilled
technician so ensure you best quality and definitely with our best factory competitive price.
B:Good material and Quality:
Since we are honest factory,we expect and look forward long cooperation,So material and quality we paid high attention. And for
quality we usually checkout during the production twice to control the quality,and we can also test on machine
C.Technicial support:
We can revise size as your request to meet your machine.
D.Best services:
We do best effort we can to our customers.
Product Tags:
|
|
Low Noise G1200Bs-630 100rpm Automatic CNC Rotary Chuck Images
|
