Durable Four Jaw Hollow Structure Manual Laser Chuck for Laser Cutting Machine
1.Descripition
Our chucks are specially produced for fiber laser cutting machine. This kind of chuck is manual dual-power chuck. It has 4 jaws and in through hole structure. It can be applied to clamp the circular, square, rectangular, elliptical and other other work-pieces with central axis symmetry.
It only needs to connect the matched motor with the gear after fixing the base to make it rotate.
Manual control of two groups of claws can clamp the work-piece tightly and drive the work-piece to rotate. Because of the long length of the parts processed by the cutter, the main chuck used as the head position of laser cutting and the back chuck matched with it are usually installed in pairs on the equipment.
It is easily installed and durable. It can meet your need for processing various sizes and shapes’ work-piece.
2.Performance Parameters
| | G400S-165 |
| | 140mm |
| | / |
| | 0.4-0.9MPa |
| | 500r/min |
| | 0-160mm |
| | 260mm |
| | 1.85g.m2 |
| | 82kg |
| | 95kg |

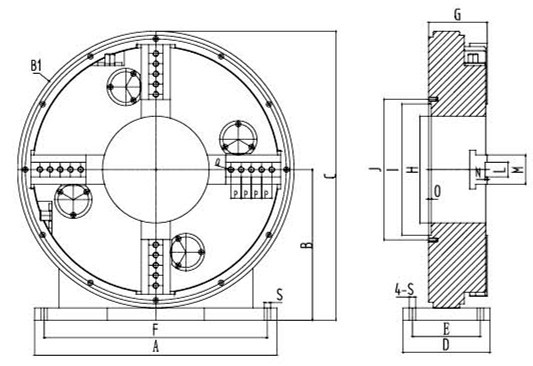

3.Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | L | M | N | O | P | Q | R | S |
| G400S-165 | 460 | 260 | 480 | 515 | 120 | 80 | 420 | 100 | 165 | 220 | 240 | 30 | 60 | 4 | 5 | 20 | M10 | 8-M8 | 14 |
4.Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
| e. Multiple configurations are available
e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
